COUPLER BODY

  • Material Specification:
    WD-70-BD-10, Gr. E
  • Specified Weight: 165 Kg

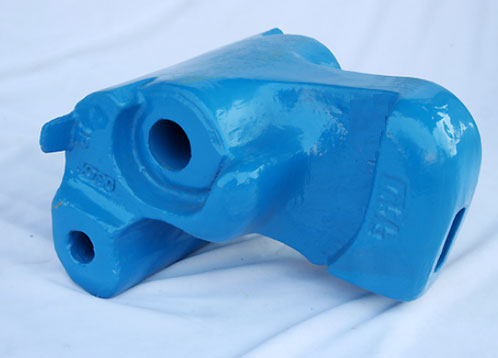

KNUCKLE

  • Material Specification:
    WD-70-BD-10, Gr. E
  • Specified Weight: 36 Kg

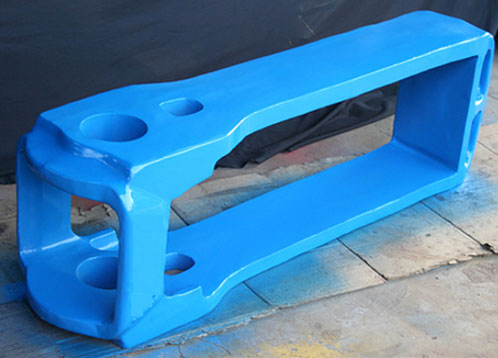

YOKE

  • Material Specification:
    WD-70-BD-10, Gr. E
  • Specified Weight: 100 Kg

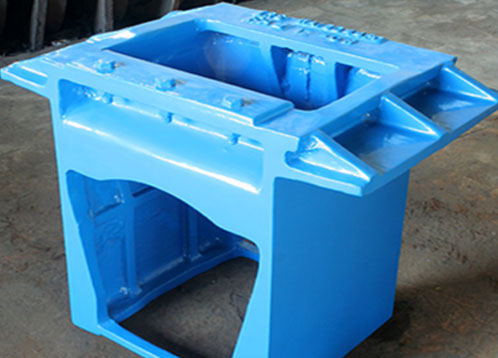

STRIKER

  • Material Specification:
    WD-70-BD-10, Gr. B
  • Specified Weight: 75 Kg

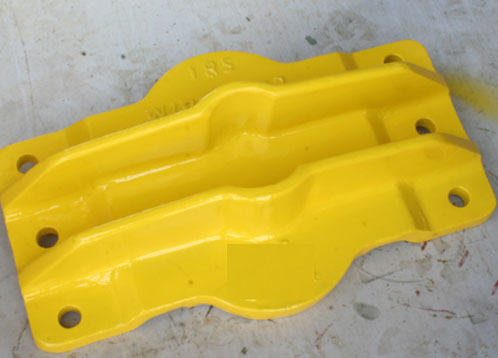

YOKE PIN SUPPORT PLATE

  • Material Specification:
    WD-70-BD-10, Gr. B
  • Specified Weight: 30 Kg

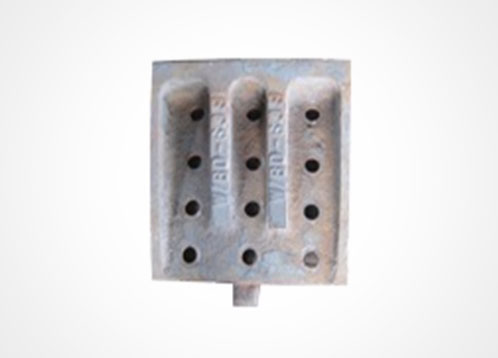

BACKSTOP

  • Material Specification:
    WD-70-BD-10, Gr. B
  • Specified Weight: 23.5 Kg

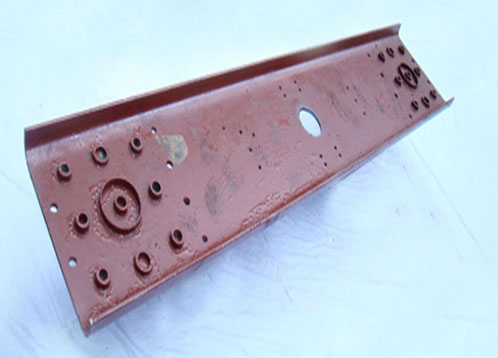

SPRING PLANK

  • Material Specification:
    IS: 5986-2011, Gr. 235
  • Specified Weight: 157 Kg

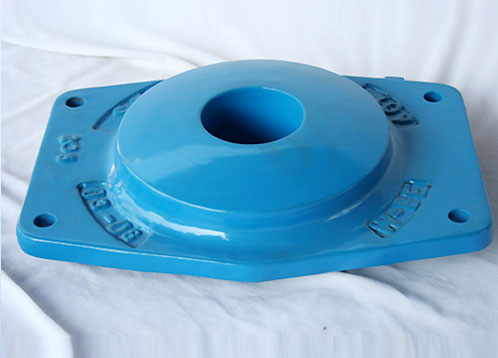

SPHERICAL CENTRE PIVOT TOP & BOTTOM

  • Material Specification:
    AAR M201, Gr. C
  • Specified Weight: 53 Kg

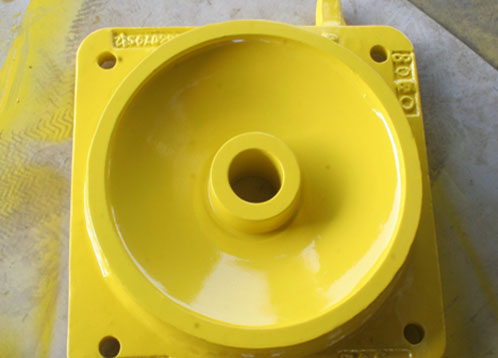

SPHERICAL CENTRE PIVOT TOP & BOTTOM

  • Material Specification:
    AAR M201, Gr. C
  • Specified Weight: 55 Kg

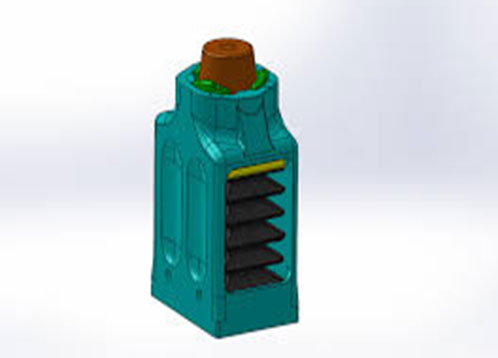

HIGH CAPACITY DRAFT GEAR WITH FOLLOWER

  • Material Specification:
    AAR M201, Gr. E
  • Specified Assly. Weight:
    150 Kg

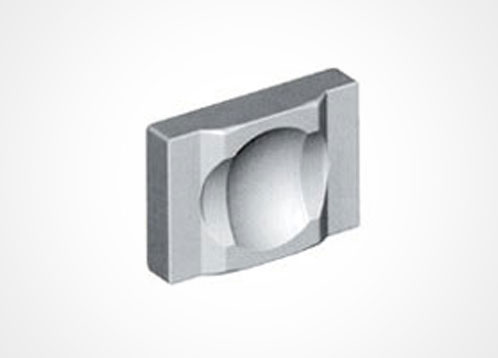

HIGH CAPACITY DRAFT GEAR WITH FOLLOWER

  • Material Specification:
    AAR M201, Gr. E
  • Specified Weight: 30 Kg

HIGH CAPACITY DRAFT GEAR WITH FOLLOWER

  • Material Specification:
    AAR M201, Gr. E
  • Specified Weight: 30 Kg

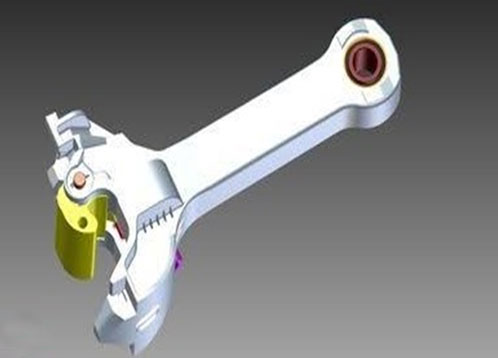

H - TYPE HIGH TENSILE TIGHT LOCK COUPLER

  • Material Specification:
    AAR M201, Gr. E
  • Specified Assly.Weight:
    300 Kg

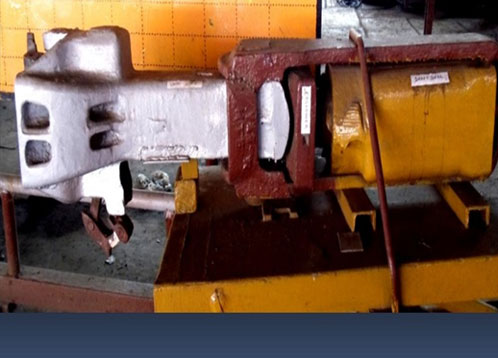

COUPLER BODY ASSEMBLY

  • Coupler Body Assembly Parts Shown:
    a. Coupler Body, b. Knuckle, c. Lock Lift Assembly,
    d. Yoke, e. Draft Gear &,
    f. Follower

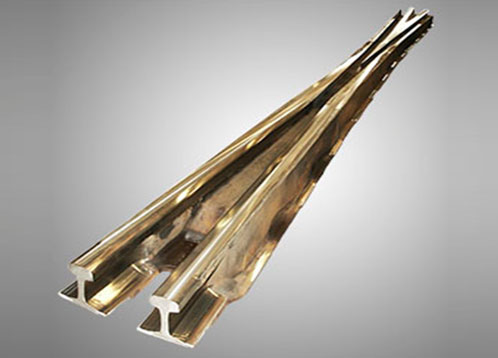

CAST MANGANESE STEEL CROSSING

  • Material Specification:
    IRS T-29
  • Specified Weight: 900 Kg

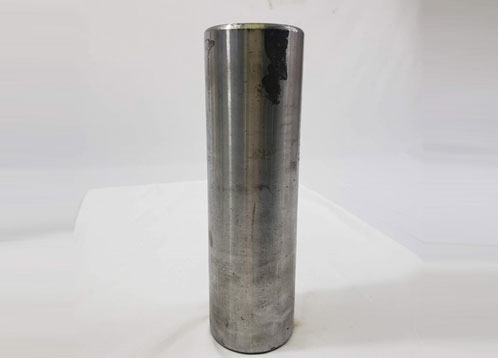

YOKE PIN

  • Material Specification:
    AAR M118 or IS:1875 Cl 5 & IS: 2004
  • Specified Weight: 15 Kg

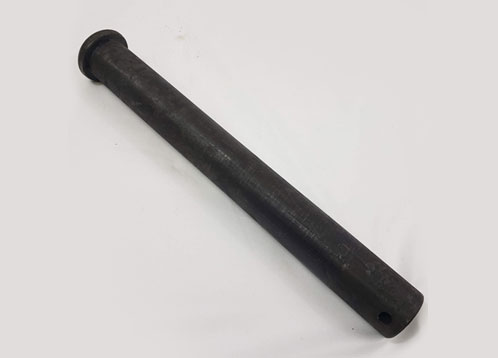

KNUCKLE PIN

  • Material Specification:
    IS:5517 – 42 Gr. 4- Mo2 & IS:2062 Fe 410-WA
  • Specified Weight: 4 Kg

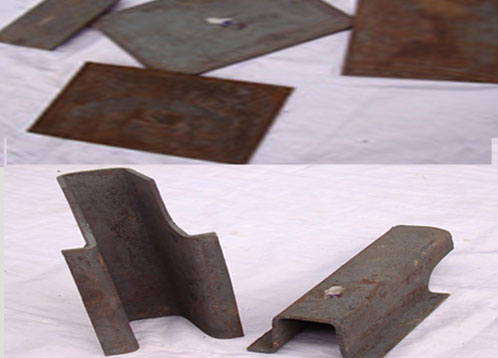

ALL TYPES OF LINERS

  • Material Specification:
    IS:3885
  • Specified Weight: Varies according to the drawing.

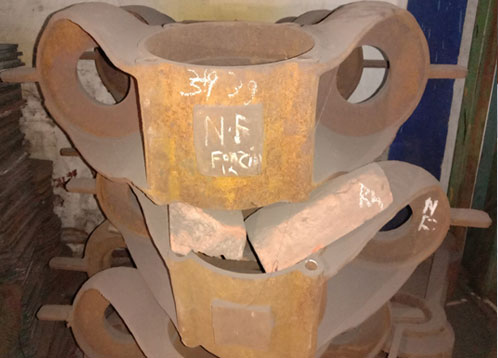

AXLE BOX

  • Material Specification:
    IS: 1030
  • Specified Weight: 73 Kg

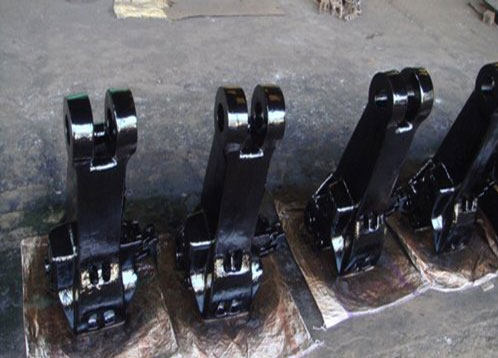

MYANMAR COUPLER ASSEMBLY

  • Material Specification:
    AAR M201, Gr. E
  • Specified Weight: 160 Kg
